Beam ANKR System
Patent Pending · No-Weld I-Beam Mounting

Clamp it.
Don't weld it.

Between-flange mounting for cameras, lighting, and apparatus on standard I-beams - no cutting, drilling, welding, or bolting to the beam. Run the numbers on your application below.

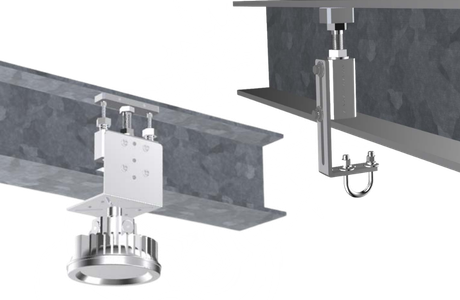

Beam ANKR and Beam ANKR MAX mounting brackets
Distance, mount to load C.G. 6"
2"8"14"20"
Your load weight
lbs - fixture, camera, or apparatus weight
Mounting configuration
In-line with the flange - mounting components sit flush against the beam face.
Max Allowable Load At This Distance
Calculating…
8–12"
Flange Width Range
700 lb
Pull-Out Force
3 lb
Bracket Weight
105 ft·lb
Clamp Bolt Torque
No Weld vs. Welded Mount
BEAM ANKR
Welded Bracket
Install Time
15–30 min, 1 person
Hours - weld, cool, inspect
Crew
1 tech, hand tools
Certified welder + fire watch
Hot Work Permit
Not required
Required
Beam Condition
Unaltered, no finish removal
Permanently modified
Reusable
Yes - remove, relocate, reuse
No - scrapped on teardown
Typical avoided cost: $600–$1,200 per mounting point in welder labor, fire watch, and permit overhead. *Estimate based on typical U.S. structural welding and fire-watch labor rates for a single-bracket hot work job. Verify against local rates - not a quote.
